CNC 1500W Digital Oscillating Knife Cutting Machine for Fabric Textile
$8,000.00
Subscription successful
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Fast Delivery
Quick, reliable shipping to any location.
Free & easy returns
Return this item by mail or in store within 90 days for a full refund.
Description
Description
Related Products
Product description

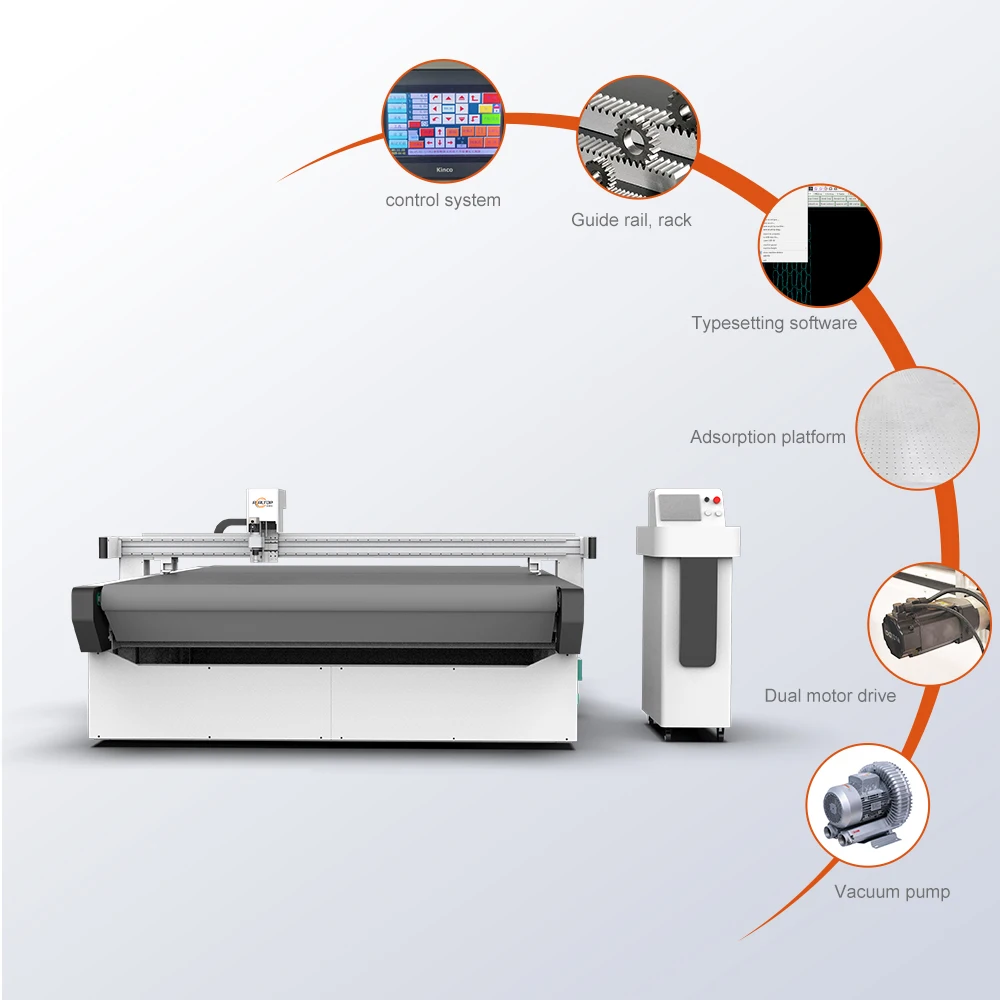

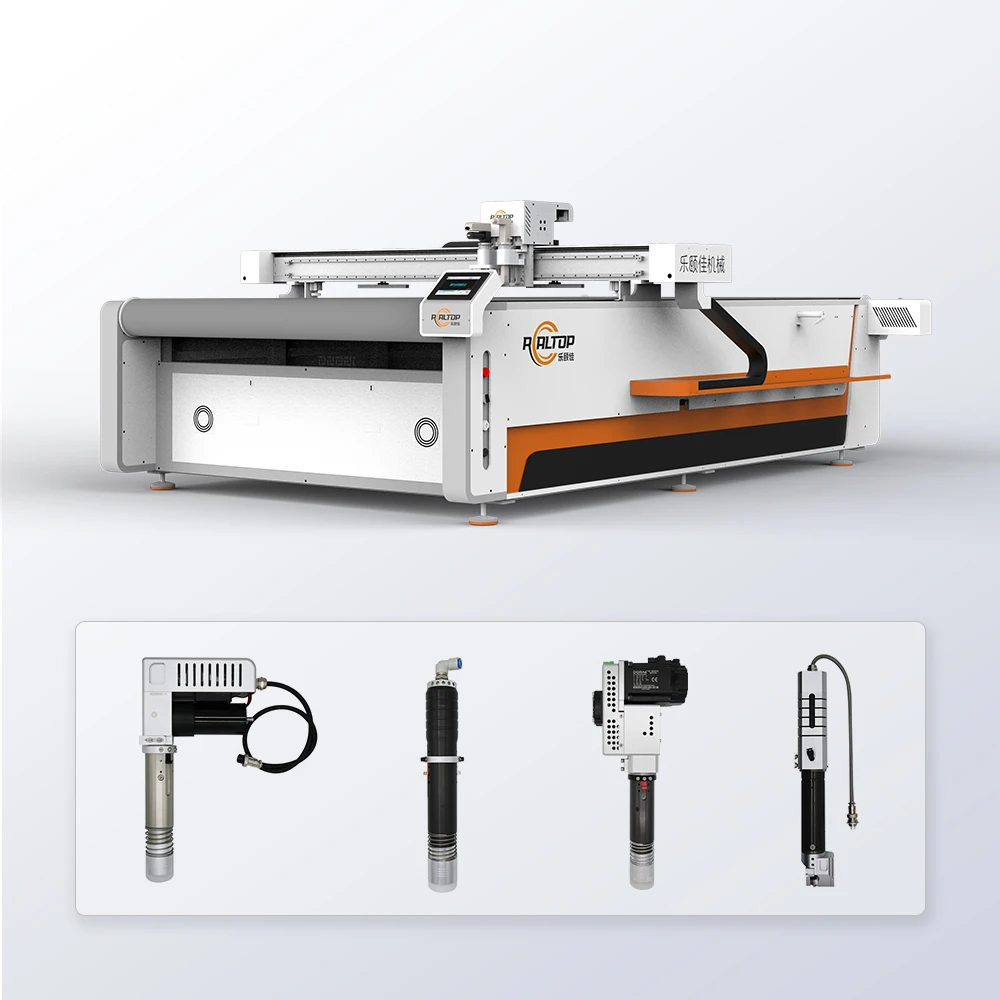

Cutting tools
Interchangeable cutting knife handle a wide range of materials.
Control panel
PLC control panel with an intuitive interface and optional display languages. Plus dedicated packaging box structure design software.
Adsorption platform
Aluminum bellows vacuum table delivers powerful vacuum across the entire surface. thanks to its excellent seal and high flatness.
Serve motors
Multiple servo drive options available. including brands like Panasonic. Delta. and Dorna.
Vacuum pump
Custom high-efficiency vacuum pump. integrally cast from aerospace-grade aluminum. reduces energy use by 30%
Machine frame
Heavy-duty frame with precision-ground surface ensures exceptional stability and long-lasting durability.
Advantages

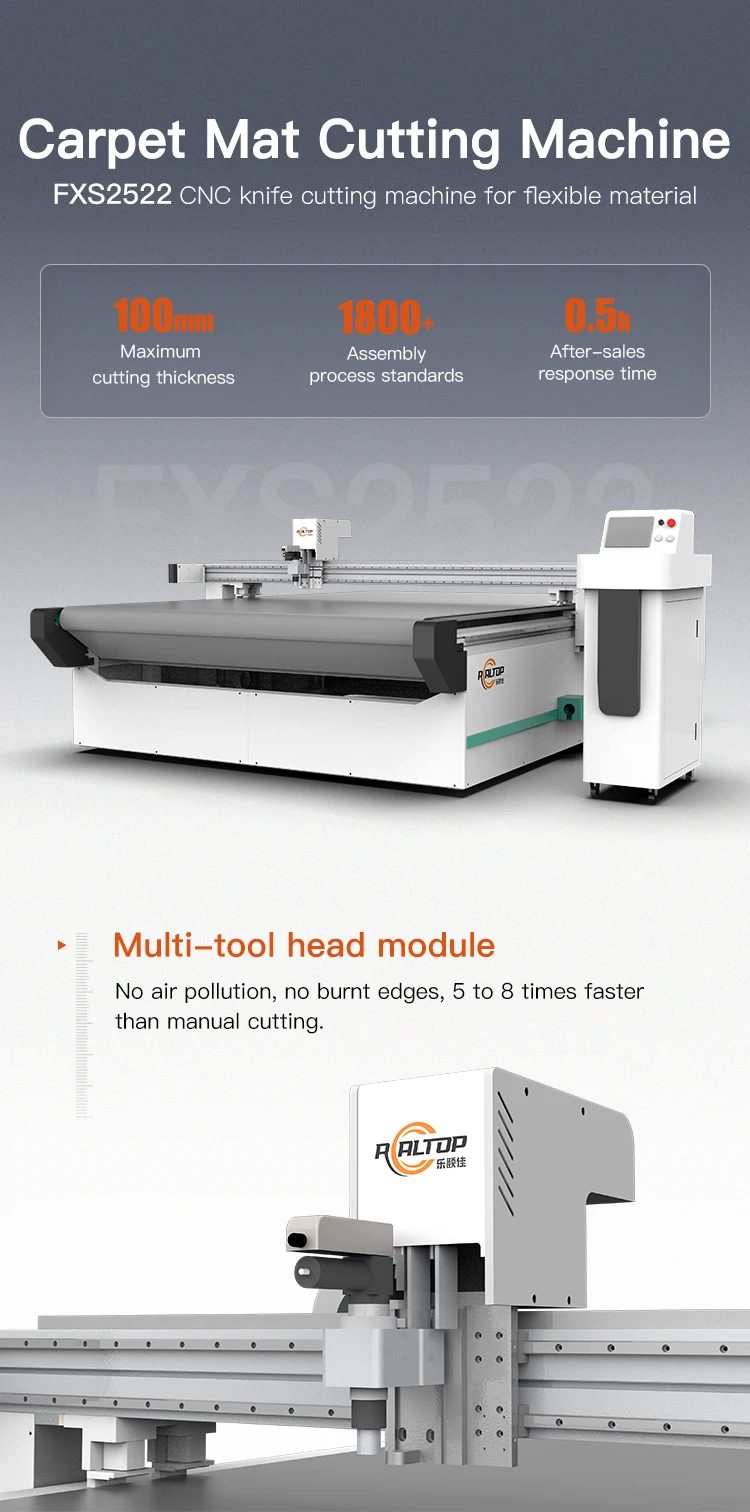

Advantages in Cutting Carpets&Mats
Vibrating knife cutting machines are widely used in processing floor mats and pads (such as rubber mats. PVC mats. carpets. yoga mats. non-slip mats. car mats. etc.). By eliminating mold costs. offering unparalleled production flexibility. achieving high-precision. high-quality cold cutting. and efficiently handling complex patterns and multi-layer materials. they bring significant improvements in efficiency and quality. The following is a brief overview of their advantages：
1 . Significantly Enhanced Cutting Efficiency✳Cutting speeds reach 1200–2000 mm/s. boosting productivity to 5–6 times that of manual cutting.
2.High Precision & Material Utilization✳Repeat positioning accuracy ± 0.1 mm. delivering smooth edges requiring no secondary trimming.3.Eco-Friendly & Wide Adaptability✳Cold cutting technology eliminates scorching. dark edges. and toxic fumes caused by lasers.4.Intelligent Operation & Low Running Costs✳Supports DXF/PLT/AI/PDF file import for automatic path generation. eliminating die development and reducing mold costs.
✳Intelligent nesting software reduces material waste.✳Single-operator control minimizes labor dependency; maintenance is simple (low blade replacement cost).
Product Parameters
Model | 2522 | ||||||
Cutting area | 2500*2200mm | ||||||
Tools avilable | Oscillating knife. Driven rotary knife. Creasing wheel. Kiss cutting tool. Pneumatic knife. Milling tool. V groove knife etc. | ||||||
Applicable Materials | Fabric. Cardboard. Carton. Mats. PVC. EVA. Leather. Acrylic. Foam. PTFE. Rubber etc. | ||||||
Cutting speed | 0-1500 mm/s | ||||||
Cutting thickness | ≤ 30mm | ||||||
Cutting accuracy | ±0.1 mm | ||||||
Vacuum pump | 9KW | ||||||
Voltage | 110V. 220V. 380V | ||||||
Profile format | PLT. DXF. AI. PDF etc. | ||||||
Safety device | Infrared sensor device and emergency stop device | ||||||
Machine size | 3300*2700*1350 mm | ||||||
Packing size | 3400*2800*1600 mm | ||||||
Application
Typical Industry Applications:
Automotive Floor Mat Industry✳Full-coverage car mats:Cutting tolerance controlled within ±0.1mm. processing time ≤3 minutes per set.✳Loop mats:Vacuum suction ensures interlayer alignment. resolving delamination issues in traditional processes.Home Floor Mats & Non-slip Pads Industry✳Custom-shaped carpets/mats .Efficiently processes coral fleece carpets and PVC mats with petal-shaped/geometric patterns.Yoga Mat Industry✳Custom-shaped yoga mats (e.g.. wave edges. cut-out designs) .cutting precision ±0.1mm. smooth edges requiring no polishing. Intelligent nesting software reduces material waste.
Customer Photos
Certifications
FAQ
1: What professional advice can you give me when I need to buy REALTOP digital cutting machine?Please tell us what material you are cutting and the dimensions of the material (width and length). We will recommend a suitable model for you based on your material texture and size.If you can send us some trial cutting materials. we will record the cutting video for your reference. welcome to visit our company and factory if possible.
2: What materials can your machine cut?REALTOP digital cutting machine can cut different kinds of soft materials. Used in different industries such as shoes. bags. clothing. cartons. composite materials. automobiles. and home furnishings.3: How to use the machine? And what after-sales services can your company provide?If you purchase our machine. we will provide free installation and training. We provide machine manual and software manual instructions for each machine. as well as videos for your reference and 24-hour online technical support. All this support is free until you are fluent in operating the machine.4: What languages does the software system support?Available in English. Russian. Italian. Chinese. etc. Special languages can be customized.
Additional information
Additional information
| model number |
RT-S2516 ,RT-S2516v ,RT-S2520 ,RT-S3022 |
|---|---|
| working area |
2500*1600mm(98.43*62.99in) ,2500*2000mm(98.43*78.74in) ,3000*2200mm(118.11*86.61in) |
